Custom PVC Static Mixers
Custom Static Mixer

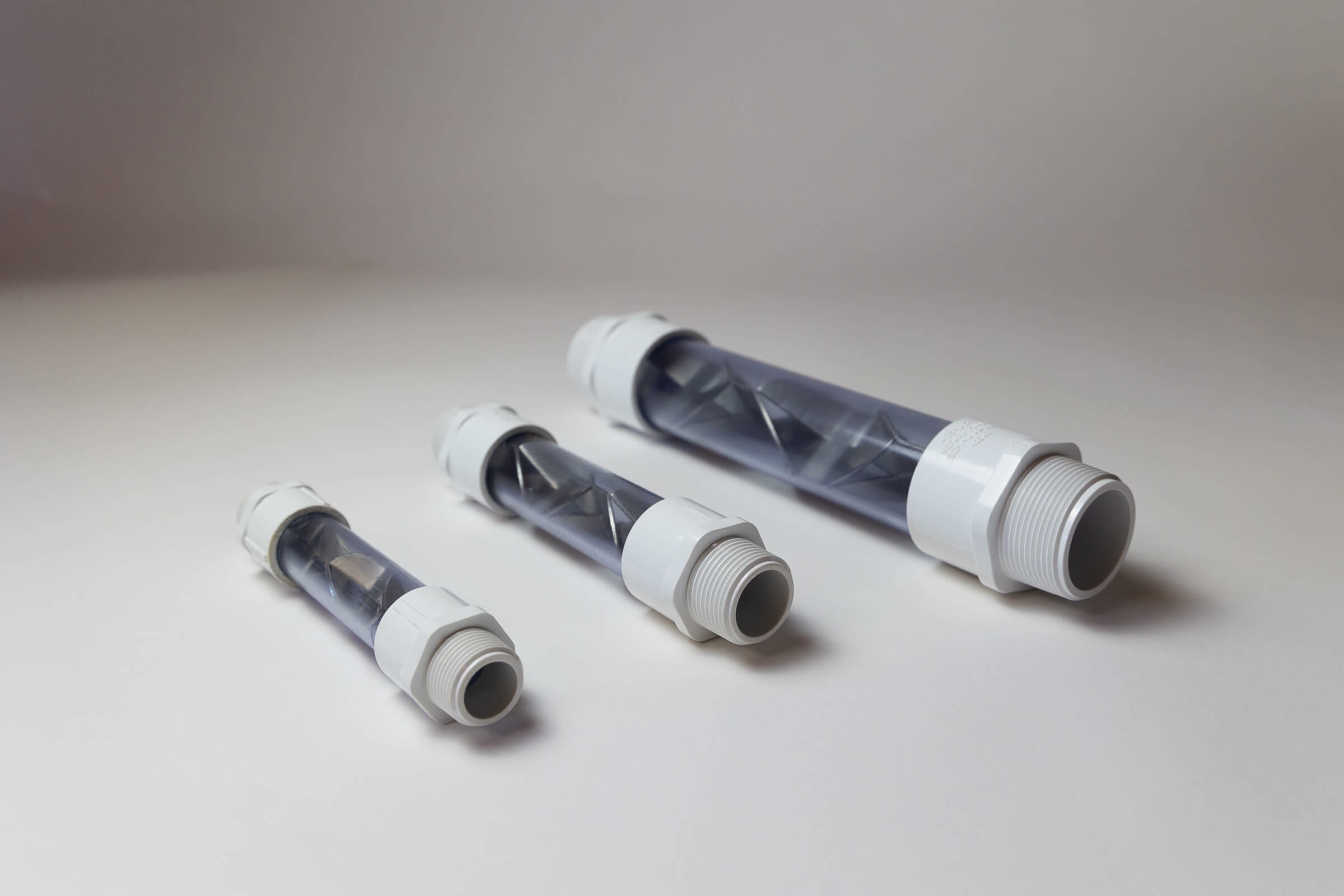

The in-stock and custom Komax PVC Static Mixers are designed to suit every application from sizes as small as ½” to as large as 20”. Komax stocks the CPS Series static mixer, which contains 4 Triple Action Static Mixing Elements incased in PVC pipe with MNPT ends. The custom Komax PVC Static Mixer is designed to each unique application, to ensure homogenous mixing across the entire process conditions. Komax also manufactures static mixers in other types of plastic, including but not limited to CPVC, PVDF, PFTE Lined Steels, HDPE, and Polypropylene. Request a quote for clear PVC, CPVC, and custom PVC static mixers today.
Industries
- Wastewater/Water
- Oil Sands/Mining-Mineral
- Pulp & Paper
- Industrial
Typical Applications
- Sodium Permangante
- Aq. KMn04
- 6% sodium Hypo
- Polymer
- Alum
- Coagulant/Chlorine
- CO2 Gas
- Alum/polymer blend
- Polymer solution potassium permangana
- Sodium hypochlorite
- 50% NaOH/6% NaOCI
- Sea water
- Aqueous chemicals
- Caustic soad
- Aluminum based coagulantaluminum sulphate
- Sludge
- Polymer
- Diluted polymer
- AQ chemicals
- AQ Chlorine
- Ammonia
- Mixing water and O2
- 38% ammonia sulphate
- Water
CPS Static Mixer
PVC Static Mixer
CPS Static Mixers
Product Benefits
Triple Action Mixing Elements
The Komax Triple Action Mixer provides the highest level of mixing of any static mixer by providing Two by Two Division, Cross Current/ Impingement mixing, and Back mixing, which produces very high mixing efficiency in a short lay length with low-pressure losses.
Non-Clogging Mixing Elements (Hi-Pass)
Set of mixing elements placed on the opposite side to allow wall-to-wall radial transfer of sludge and debris with no clogging or build up as it offers a wider opening in the center of the static mixer allowing bigger particles to pass through.
Technical Specifications and Available Options for PVC Static Mixers
End Connections & Available Custom Options
- Flanged Ends: Flanged end connections allow for easy mounting of the static mixer into the process pipeline. As a general standard, PVC static mixers have raised face flanges per ASME B16.5 standards. Komax can also fabricate mixers to contain DIN (metric) flanges as well.
- Threaded Ends: Komax Systems offers male and female NPT end connections on static mixers as required.
- Plain Ends: For custom configuration, Komax Systems offers plain end connections on static mixers.
- Injection Port/Quill: An injection port or quill can be added to the static mixer to allow for an additive stream to be injected directly into the static mixer with the desired connection type.
*All static mixers are custom made; end connection type can be made per customer request.
Available Materials and Sizes
- Diameter: 1/2″ – 60″
- Material: PVC, CPVC, Clear PVC
- Pipe Schedule: Schedule 10-40
PVC Static Mixer Sizing Table
A Series
| L Overall Length (Inches) | |||||||||||||
| Line Size | 2 Elements | 3 Elements | 4 Elements | 5 Elements | L2 (Inch) | Side Port Size(Inch) | |||||||
| 3/4″ | 6 | 7 | 8 | 9 | 3 | 1/4 | |||||||
| 1″ | 7 | 8 | 9 | 11 | 3 | 1/4 | |||||||
| 1 1/2″ | 9 | 11 | 13 | 16 | 3 | 1/2 | |||||||
| 2″ | 11 | 13 | 16 | 19 | 3 | 3/4 | |||||||
| 2 1/2″ | 13 | 16 | 19 | 22 | 3 1/2 | 1 | |||||||
| 3″ | 15 | 19 | 22 | 28 | 4 | 1 1/2 | |||||||
| 4″ | 19 | 24 | 29 | 32 | 4 1/2 | 1 1/2 | |||||||
| 6″ | 22 | 30 | 37 | 46 | 5 | 1 1/2 | |||||||
| 8″ | 28 | 38 | 48 | 58 | 5 1/2 | 2 | |||||||
| 10″ | 34 | 48 | 60 | 72 | 6 | 2 | |||||||
| 12″ | 40 | 56 | 70 | 84 | 6 | 2 | |||||||
M Series
| L Overall Length (Inches) | Shipping Wt. LBS | ||||||||||||||||||||||||
| Line Size | 2 Elements | 3 Elements | 4 Elements | 5 Elements | 6 Elements | 8 Elements | 2 Elements | 3 Elements | 4 Elements | 5 Elements | 6 Elements | 8 Elements | |||||||||||||
| 3/4″ | 3 | 4 | 5 | 6 | 7 | 9 | 5 | 6 | 7 | 8 | 9 | 11 | |||||||||||||
| 1 | 4 | 5 | 6 | 8 | 9 | 12 | 6 | 7 | 8 | 10 | 11 | 14 | |||||||||||||
| 1 1/2 | 5 | 7 | 9 | 12 | 14 | 18 | 8 | 9 | 10 | 14 | 16 | 20 | |||||||||||||
| 2 | 7 | 9 | 13 | 15 | 18 | 24 | 14 | 15 | 16 | 18 | 20 | 24 | |||||||||||||
| 2 1/2 | 8 | 11 | 14 | 18 | 21 | 28 | 21 | 23 | 25 | 27 | 29 | 33 | |||||||||||||
| 3 | 9 | 13 | 16 | 22 | 27 | 35 | 27 | 29 | 33 | 39 | 43 | 51 | |||||||||||||
| 4 | 11 | 16 | 21 | 26 | 32 | 42 | 43 | 49 | 55 | 62 | 70 | 86 | |||||||||||||
| 6 | 16 | 24 | 31 | 38 | 46 | 60 | 78 | 93 | 110 | 130 | 150 | 186 | |||||||||||||
| 8 | 21 | 31 | 41 | 50 | 60 | 80 | 132 | 163 | 195 | 245 | 280 | 355 | |||||||||||||
| 10 | 26 | 39 | 52 | 64 | 76 | 100 | 213 | 267 | 326 | 410 | 476 | 592 | |||||||||||||
| 12 | 32 | 47 | 62 | 76 | 90 | 120 | 330 | 405 | 519 | 633 | 729 | 906 | |||||||||||||
CPS Sizing Table
| Model | Size NPS | Length | Flowrate | Press Drop | Price | ||||||
| CPS-007 | 3/4″ DIA | 6 3/4″ | 1-12 | 0.5-8 | $135.00 | ||||||
| CPS-010 | 1″ DIA | 8″ | 2-20 | 0.1-8 | $150.00 | ||||||
| CPS-015 | 1 1/2″ DIA | 11 ¾” | 4-45 | 0-1.8 | $180.00 | ||||||
| CPS-020 | 2″ DIA | 14″ | 6-75 | 0.1-8 | $220.00 | ||||||
| CPS-030 | 3″ DIA | 20 ¾” | 25-160 | 0.2-8 | $510.00 | ||||||
| CPS-040 | 4″ DIA | 30″ | 40-275 | 0.2-8 | $865.00 | ||||||
Additional Product Details
If your process is a non-batch-based process requiring consistent mixing within your system a static mixer may be right for you and your project. That being said, the best way to know if a static mixer is a right match for you is by getting in contact with our sales engineers who are expertly trained on the subject! Get your free quote today!
By having very specifically placed and pitched triple-action elements within the body of the inline static mixer, the flow of the fluid that is desired to be mixed acts as the propellant allowing the mixer to achieve near perfect homogeneity without added energy as there are no moving parts within our patented mixers.
While there are a number of different styles of static mixer offerings here at Komax Systems, such as channel mixers, sanitary mixers, and custody transfer mixers to name a few, the base purpose and function of our static mixers is the same. The mixer uses fixed triple-action elements within itself to take advantage of the already present inertia of the solution passing through the pipes to effectively and efficiently mix the product without requiring any movement or expending any excess energy.
Because static mixers do not move and use the kinetic energy that is already present they require no added electrical energy to be used leading to energy cost savings. Along with energy savings, the internal elements can be designed for easy removal so they can be cleaned and maintained without much hassle, allowing the life span of the mixer to be elongated making the static mixer itself to be an excellent investment for the greater pipeline process.
If your questions about our products are not answered here, get in touch with us for more information.
See ALl FAQsOur Custom Product Process
Getting a Komax Systems product for your industrial process is simple! To get started, get in contact with us! Give us a call or submit a quote via our website to get your quote started.
Once we receive your request and the information associated with your process one of our sales engineers will reach out to make sure we've got all of the information needed to properly develop your quote. With all the correct information, our sales engineers can populate a unique quote specific to your custom design and your process' needs. Once the quote is finalized it is then paired with a drawing mock-up of your unit to make sure the specifications are to your liking and perfect for your system.
As soon as the quote and drawing are approved your unit is then off to fabrication. While your unit is being manufactured you are kept up to date on its progress and you will be notified once your new Komax Systems product is on its way to you!
Submit Your Request
Fill our out easy online form and get in touch with us!
Talk With Our Experts & Get a Quote!
Our experts will fine tune your quote to meet your projects specifications.
Get a Custom Design of Your Product
Get a sense of what your product will look like and how it will fit into your system.
Fabrication and Shipment of Your Order
Once approved we have the unit manufactured and shipped off to you!
